Quick Details

  • Condition: New
  • Usage: Industrial equipment, agricultural equipment
  • Fuel: Diesel
  • Stroke: 4 Stroke
  • Cylinder: Single Cylinder
  • Cold Style: Air-cooled
  • Start: Kick Start
  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: LAUNTOP
  • Model Number: LA186FA
  • Dimension(L*W*H): 412*470*494mm
  • Weight: 48kg / 50kg
  • Certification: CE
  • Warranty: 1 year from date of B/L
  • After-sales Service Provided: No overseas service provided
  • Name: 1 cylinder air cooled diesel engine 186fa
  • Displacment:: 418cc
  • Bore*stroke: 86*72mm
  • Speed: 3000rpm/3600rpm
  • Max.output: 8.6hp/3000rpm; 10hp/3600rpm
  • Oil capacity:: 1.65L
  • Fuel tank capacity:: 5.5L
  • Fuel consumption:: 265g/kw.h; 195g/hp.h; 2.29L/h
  • Max. torque:: 18.7Nm/2880rpm
  • Compression ratio: 19:1

Packaging & Delivery

Packaging Details 1 cylinder air cooled diesel engine 186fa
1. packed in carton, 1 unit/carton
2. pallet available for less container loading
3. packing size:528*485*565mm
4. loading capacity: 192 units/20'; 384 units/40'; 384 unit/40'HQ
Delivery Time 1-2 weeks for sample order; 30-35 days for container order
1 Cylinder Air Cooled Diesel Engine 186FA

Launtop LA single cylinder diesel engine series has 3 catagories: 170F, 178F and 186F. As a factory started by diesel products business, we have accumulated experience in R&D for 14 years. Launtop single cylinder diesel engine is excellent in performance, both kick start and electric start available, we also offer half speed engne. The below technical specification and quotation just for your information, if you have any special request, please contact with our sales to check the possibility and price.

Product Description
 Specifications:
MODEL
Diesel engine LA186FA
Bore*stroke (mm) / (inch)
86*72
3.39*2.83
Displacement (cc) / (cu.in.)
418 / 25.50
Engine speed (rpm)
3000
3600
Maximum output (hp)
8.6
10.0
Continuous output (hp)
7.7
8.6
Power take off
Crankshaft or Camshaft
(Camshaft PTO rpm is 1 / 2)
Starting system
Recoil or Recoil / Electric
Fuel tank capacity (L) / (us.gal)
5.5/ 1.45
Lube oil capacity (L) / (us.gal)
1.65 / 0.44
Dimensions L*W*H
(mm) / (inch)
417*470*494
16.4*18.5*19.4
Net weight (Recoil) (kg) / (lbs)
48 / 105.8



Manufacturing process

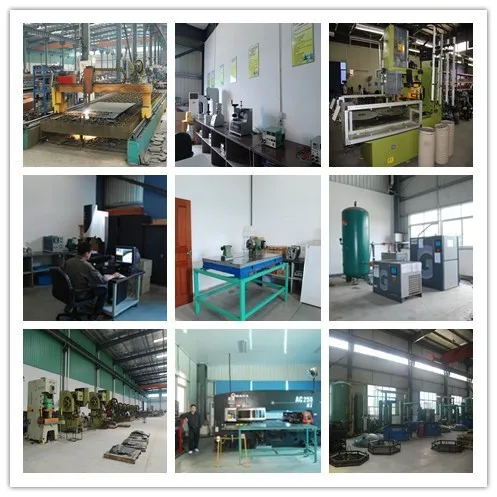

Our equipments



Optional parts



Crankshafts

Colors

Application



Quality Control

We beliveve good quality rises in the whole manufacturing process. Continuous improvement in quality

is our target. Our quality control system mainly consist of 4 parts, they are material inspection, key

control point inspection, products test, spot inspection by QC. Some times, if neccessary, our products

will be inspect by CIQ or SGS by some other party request by our customer.





Certificates



CE and ISO






Packaging & Shipping

1. packed in carton with foam, 1 unit/carton

2. pallet available for less container loading
3. packing size:528*485*565mm
4. loading capacity: 192 units/20'; 384 units/40'; 384 unit/40'HQ

5. shipping method: usually by sea





Our Services

1. We provide one year warranty for all of our products count from the datd of B/L. If the machine break during he warranty period due to quality or assembling problem, we provide free spare parts to our customer for reparing. After expiration, we provide cost spare parts service.



2. We provide free technical consultant if you have any question about the usage of our products.



3. We can make OEM as per request of our customer, such as customer brand, label, package, special model design, color, etc.


Company Information

Year establish: Sep., 2000

Factory location: Hongkuan Industrial Park, Fuqing city, Fujian province, China

Factory area: 200,000 m2

Employee number: 800+

Engineers number: 50+

Main products: Air cooled single and twin cylinder gasoline & diesel engine, air cooled gasoline generators from 0.65-10kW, air cooled diesel generators from 2-10kW, water cooled multi-cylinder diesel generator from 8-2500kva, light towers, gasoline & diesel water pump from 1-4 inch, lawn mower from 16-22 inch, gasoline & diesel high pressure washers,  welding generators.

Turnover at 2015 : 1.1 billion USD

We on fairs

Our team

FAQ

1. Q: What's the MOQ for this model ?

    A: The MOQ for this products is 10 units. But for sample order, we also accept 1-2 units.

2. Q: Do you have this model in stock ?

    A: Usually, customers from different district have different request to the specification, such as color, speed, so it's hard to prepare stock in advance. But sometimes we will have several units left in stock, please ask our sales people to check for you.

3. Q: How about the production capacity ?

    A: FYI, the current production capacity for our twin cylinder products is 50units/day. For gasoline products is 250 untis/day, for diesel products is 150 units/day.

4. Q: Can I mix several models in a container ?

    A: Yes, this is acceptable. Please ask our sales to calculate the quantity for you.
