Quick Details

  • Condition: New
  • Usage: Industrial equipmet
  • Fuel: Gasoline
  • Stroke: 4 Stroke
  • Cylinder: Multi-cylinder
  • Cold Style: Air-cooled
  • Start: Electric Start
  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: LAUNTOP
  • Model Number: LT620
  • Dimension(L*W*H): 390*460*455mm
  • Weight: 43kg / 46kg
  • Certification: EPA
  • Warranty: 1 year from date of B/L
  • After-sales Service Provided: No overseas service provided
  • Displacement:: 614cc
  • Horse power:: 20hp
  • Speed:: 3000rpm / 3600rpm
  • Starting system: electric start with key switch box
  • Oil capacity:: 1.4L
  • Fuel capacity: without fuel tank
  • Max. torque:: 44Nm/2400rpm or 40Nm/2800rpm
  • Color:: Red or black
  • Certificate:: EPA
  • Name:: 20hp v-twin cylinder gasoline engine with EPA

Packaging & Delivery

Packaging Details 20hp v-twin cylinder gasoline engine with EPA
1. packed in carton, 1 unit/carton;
2. pallet available for sample order;
3. packing size: 530*530*500mm
4. loading capacity: 176 units/20' ; 352 units/40';440 units/40'HQ
Delivery Time 1-2 weeks for sample order; 30-35 days for container order

20hp V-twin Cylinder Gasoline Engine with EPA



Related products you may interested in

20hp two cylinder diesel engine   10kW silent two cylinder gasoline generator





Annoucement



The unit price will be changed with exchange rate, if you are interested in our product, please consult with our sales for the latest price.

Product Description

Why choose us ?



1.90% of the working process are done by our own facility to guarantee the goods in reliable quality at a feasible cost.

2.Modernized plant with advance assembling & inspection  systems.

3.A rich experience and strong technique management team to support our products in high quality.

4.Our company passed ISO9001:2008 and attained the approval of CE, EPA, GS, ETL, EMC and SONCAP certificates.

5.In time delivery and sound after-sales service.



Features

* Oil alert design avoids engine damage in the low oil level condition

* Compact in structure
* With oil cooler to decrease the temperature of the engine
The below technical specification and quotation just for your information, if you have any special request, please contact with our sales to check the possibility and price.

Product showcase

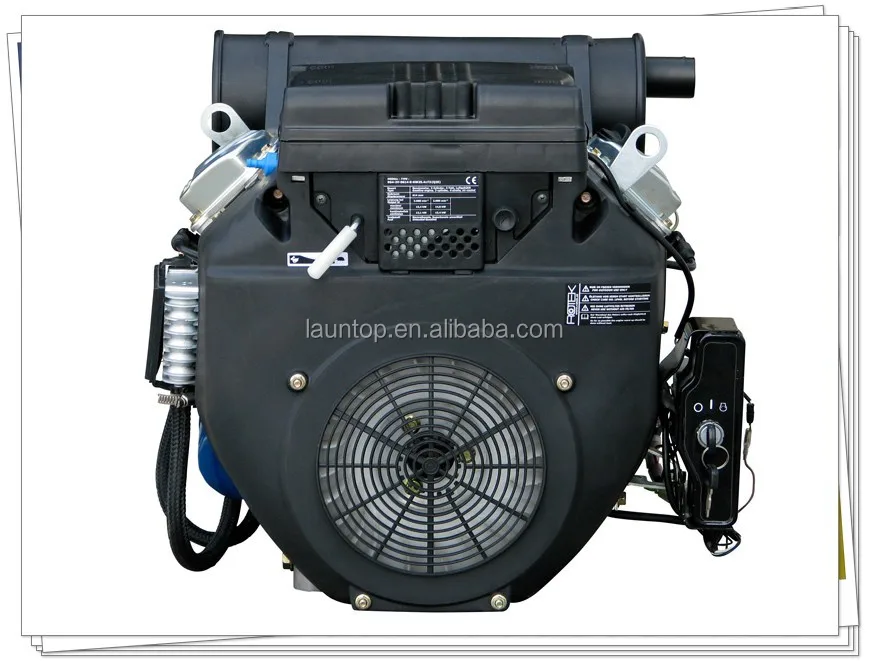

The front view of 20hp v-twin cylinder gasoline engine with EPA

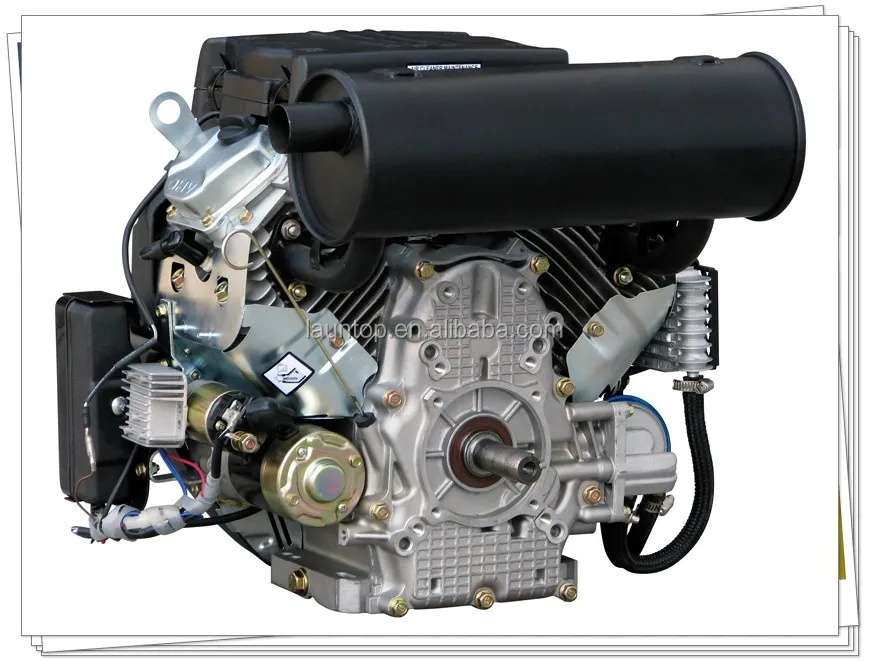

The rear view of  20hp v-twin cylinder gasoline engine with EPA

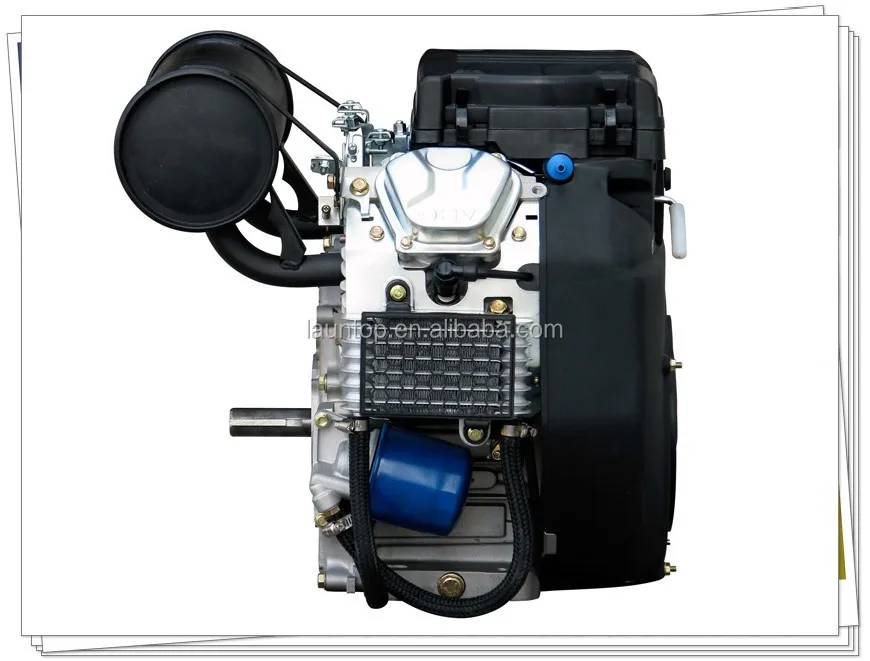

The left side of  20hp v-twin cylinder gasoline engine with EPA

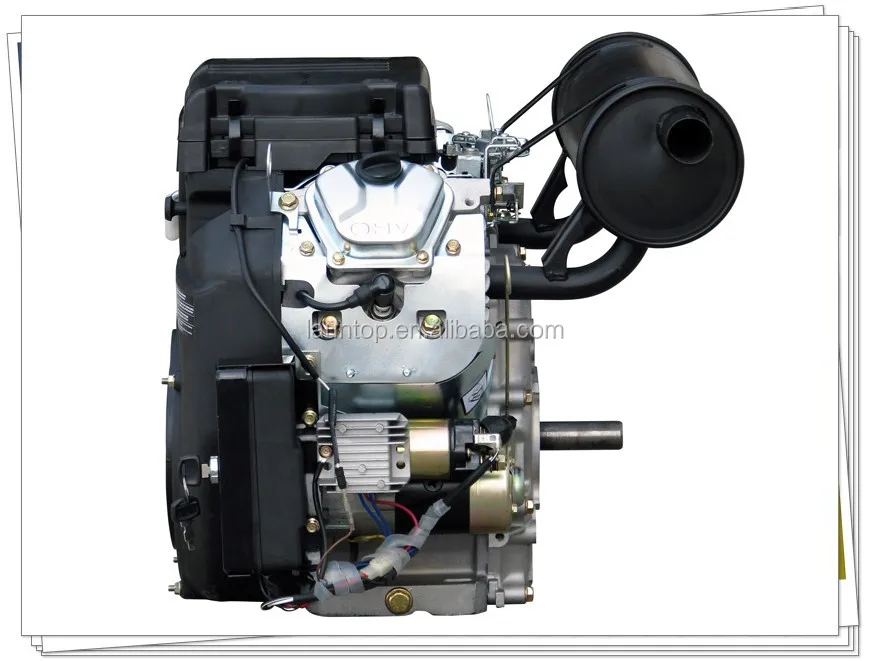

The right side of  20hp v-twin cylinder gasoline engine with EPA

Specifications:
 MODEL
20hp v-twin cylinder gasoline engine with EPA LT620
 Displacement(cc) / (cu.in)
614 / 37.46
 Bore*stroke(mm) / (inch)
77*66 / 3.03*2.59
 Max output(hp / rpm)
20.3 / 3600
 Max torque(kg.m)
4.5 / 2500
 Fuel consumption(g / hp.hr)
230
 Ignition system
TCI
 Starting system
Recoil or electric (optional)
 Air cleaner
Dual silent (Semi-dry)
 Oil capacity (L) / (US.Gal)
1.4 / 0.36
 Net weight (kg) / (lbs)
43 / 94.79
 Dimensions L*W*H (mm) / (inch)
390*460*455 / 15.35*18.11*17.91

























































Quality Control

We beliveve good quality rises in the whole manufacturing process. Continuous improvement in quality

is our target. Our quality control system mainly consist of 4 parts, they are material inspection, key

control point inspection, products test, spot inspection by QC. Some times, if neccessary, our products

will be inspect by CIQ or SGS by some other party request by our customer.



Certificates



Attention !



Dear customers, we will update our quality certificates any time, but it's hard to update this information for every product we published on Alibaba website. If you find our certificate is expired, please ask our sales to provide the latest version. Thanks !



2016 EPA

ISO 9001:2008 Certificate for our factory


Packaging & Shipping

The 20hp v-twin cylinder gasoline engine with EPA is packed in carton with support sheet in each edge, and with polywood at the bottom to lock the engine in case of move during transportation.

FAQ

1. Q: What's the MOQ for this model ?

    A: The MOQ for this products is 10 units. But for sample order, we also accept 1-2 units.

2. Q: Do you have this model in stock ?

    A: Usually, customers from different district have different request to the specification, such as color, speed, so it's hard to prepare stock in advance. But sometimes we will have several units left in stock, please ask our sales people to check for you.

3. Q: How about the production capacity ?

    A: FYI, the current production capacity for our twin cylinder products is 50units/day. For gasoline products is 250 untis/day, for diesel products is 150 units/day.

4. Q: Can I mix several models in a container ?

    A: Yes, this is acceptable. Please ask our sales to calculate the quantity for you.

Delivery time

1. Delivery time for engines & generators usually take 30 days after receive buyer's deposit.



2. Delivery time for water pumps & high pressure washers usually take 40 days after receive buyer's deposit.



3. For special period, for example, Chinese spring festival, the delivery time will be a little bit longer. So, in case of any impact on your sales, please arrange your purchase plan timely. If you place order during festival, please check with our sales the exact delivery time.



4. Also, in case of any delay in shipment, please arrange payment in time according to the payment terms agreed by both parties. Thank you for your cooperation !

Company Information

Year establish: Sep., 2000

Factory location: Hongkuan Industrial Park, Fuqing city, Fujian province, China

Factory area: 2000,000 m2

Employee number: 800+

Engineers number: 50+

Main products: Air cooled single and twin cylinder gasoline & diesel engine, air cooled gasoline generators from 0.65-10kW, air cooled diesel generators from 2-10kW, water cooled multi-cylinder diesel generator from 8-2500kva, light towers, gasoline & diesel water pump from 1-4 inch, lawn mower from 16-22 inch, gasoline & diesel high pressure washers,  welding generators.

Turnover at 2015 : 1.1 billion USD
